Itron offers touch displays tough enough for all weathers

Itron offers touch displays tough enough for all weathers

The photo lithographic etching process results in a precise pattern as small as 10um width on the reverse side of the glass. The metallisation prevents non-illuminated areas from light bleed or viewing angle deviation as seen in plastic technologies.

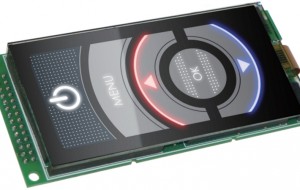

Noritake Itron can supply touch panels and complete modules with evaluation products available for purchase on the web.

Glass panel thickness ranges from 0.7mm to 4mm and up to 15-inch screen diagonal with reverse bonded flexi-circuit termination. A combination of outer touch switches around a TFT screen is then a viable solution.

Modules can incorporate intelligent high-brightness multi-colour LED backlights with the touch control circuit interfacing via a serial link to a host or individual switched outputs which are suitable for relay or direct peripheral control.

The Touch Switches are available in various finishes including gold, black, white, reflective (mirror) and transparent.
