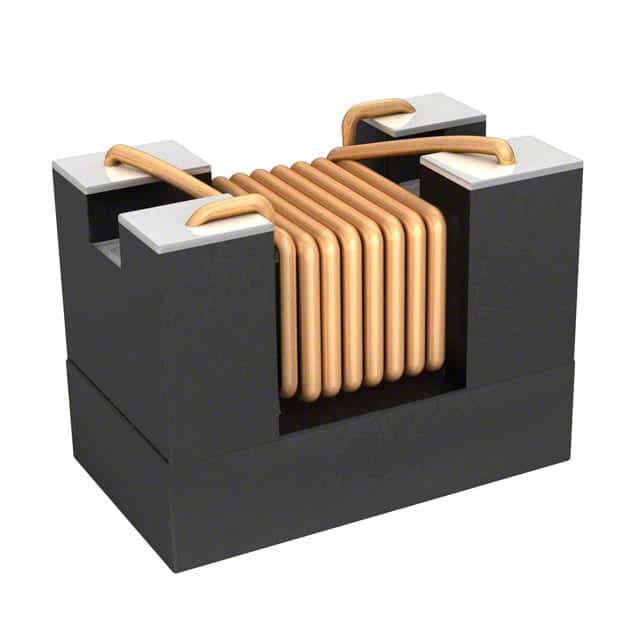

DLW21HN121HQ2L Image Image may be representation.
See specs for product details.
DLW21HN121HQ2LMurata Electronics CMC 200MA 2LN 120 OHM SMD
Part NumberDLW21HN121HQ2L
PackageHorizontal, 4 PC Pad
ManufacturerMurata Electronics
RoHs StatusROHS3 Compliant
Manufacturer Part NumberMurata Electronics-DLW21HN121HQ2L
DescriptionCMC 200MA 2LN 120 OHM SMD
In stock59430
Data sheet
1.DLW21HN121HQ2L.pdf 2.DLW21HN121HQ2L.pdf 3.DLW21HN121HQ2L.pdf 4.DLW21HN121HQ2L.pdf
Please click " QUICK RFQ " and provide your contact information,
or email us at [email protected].
We will respond promptly to your inquiry.
In stock: 59430 pcs Required fields are indicated by an asterisk ( * )

Please send RFQ, we will respond immediately.

  • Specifications
  • Product Details - DLW21HN121HQ2L
  • DLW21HN121HQ2L Tech Specifications
    Murata Electronics - DLW21HN121HQ2L technical specifications, attributes, parameters and parts with similar specifications to Murata Electronics - DLW21HN121HQ2L
    Manufacturer Murata Electronics
    Voltage Rating - DC 20V
    Voltage Rating - AC -
    Size / Dimension 0.079" L x 0.047" W (2.00mm x 1.20mm)
    Series DLW21
    Ratings -
    Package / Case Horizontal, 4 PC Pad
    Package Tape & Reel (TR)
    Operating Temperature -40°C ~ 85°C
    Number of Lines 2
    Mounting Type Surface Mount
    Impedance @ Frequency 120 Ohms @ 100 MHz
    Height (Max) 0.039" (1.00mm)
    Filter Type Signal Line
    Features -
    DC Resistance (DCR) (Max) 680mOhm
    Current Rating (Max) 200mA
    Base Product Number DLW21HN
    Approval Agency -
  • TheDLW21HN121HQ2Lis a Filters component, full developed and mass-produced by Murata Electronics manufacturer, subject to rigorous quality control and successfully meeting production standards. The product description is CMC 200MA 2LN 120 OHM SMD and it falls under the category of Common Mode Chokes, with Manufacturer of Murata Electronics and Voltage Rating - DC of 20V and Voltage Rating - AC of -. Efficient purchasing through Murata-Electronics.com. Here, you can find a wide variety of electronic components produced by manufacturers worldwide. If you do not find the information you are looking for, you can obtain more valuable information via email [email protected], such as stock quantities, special pricing, datasheets, and more details for DLW21HN121HQ2L or order. We are always pleased to hear from you, so feel free to contact us at any time.
