HomeProductsInductors, Coils, ChokesFixed InductorsLQH43MN821J03L

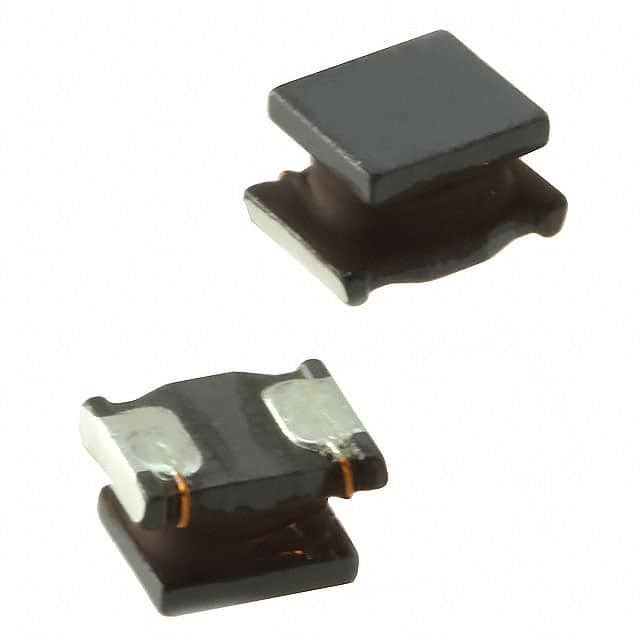

LQH43MN821J03L Image Image may be representation.
See specs for product details.
LQH43MN821J03LMurata Electronics FIXED IND 820UH 60MA 20.5OHM SMD
Part NumberLQH43MN821J03L
Package1812 (4532 Metric)
ManufacturerMurata Electronics
RoHs StatusROHS3 Compliant
Manufacturer Part NumberMurata Electronics-LQH43MN821J03L
DescriptionFIXED IND 820UH 60MA 20.5OHM SMD
In stock49989
Data sheet
1.LQH43MN821J03L.pdf 2.LQH43MN821J03L.pdf
Please click " QUICK RFQ " and provide your contact information,
or email us at [email protected].
We will respond promptly to your inquiry.
In stock: 49989 pcs Required fields are indicated by an asterisk ( * )

Please send RFQ, we will respond immediately.

  • Specifications
  • Product Details - LQH43MN821J03L
  • LQH43MN821J03L Tech Specifications
    Murata Electronics - LQH43MN821J03L technical specifications, attributes, parameters and parts with similar specifications to Murata Electronics - LQH43MN821J03L
    Manufacturer Murata Electronics
    Type Drum Core, Wirewound
    Tolerance ±5%
    Supplier Device Package 1812
    Size / Dimension 0.177' L x 0.126' W (4.50mm x 3.20mm)
    Shielding Unshielded
    Series LQH43
    Ratings -
    Q @ Freq 40 @ 796kHz
    Package / Case 1812 (4532 Metric)
    Package Tape & Reel (TR)
    Operating Temperature -40°C ~ 85°C
    Mounting Type Surface Mount
    Material - Core Ferrite
    Inductance Frequency - Test 1 kHz
    Inductance 820 µH
    Height - Seated (Max) 0.110' (2.80mm)
    Frequency - Self Resonant 2.2MHz
    DC Resistance (DCR) 20.5Ohm Max
    Current Rating (Amps) 60 mA
    Current - Saturation (Isat) -
    Base Product Number LQH43MN
  • TheLQH43MN821J03Lis a Inductors, Coils, Chokes component, full developed and mass-produced by Murata Electronics manufacturer, subject to rigorous quality control and successfully meeting production standards. The product description is FIXED IND 820UH 60MA 20.5OHM SMD and it falls under the category of Fixed Inductors, with Manufacturer of Murata Electronics and Type of Drum Core, Wirewound and Tolerance of ±5%. Efficient purchasing through Murata-Electronics.com. Here, you can find a wide variety of electronic components produced by manufacturers worldwide. If you do not find the information you are looking for, you can obtain more valuable information via email [email protected], such as stock quantities, special pricing, datasheets, and more details for LQH43MN821J03L or order. We are always pleased to hear from you, so feel free to contact us at any time.
